MXPS15 Power Supply
The MXPS15 is a power supply designed to supply 13.8 volts nominal DC .
![]() Front View |
![]() Rear View |
![]() Installed View |

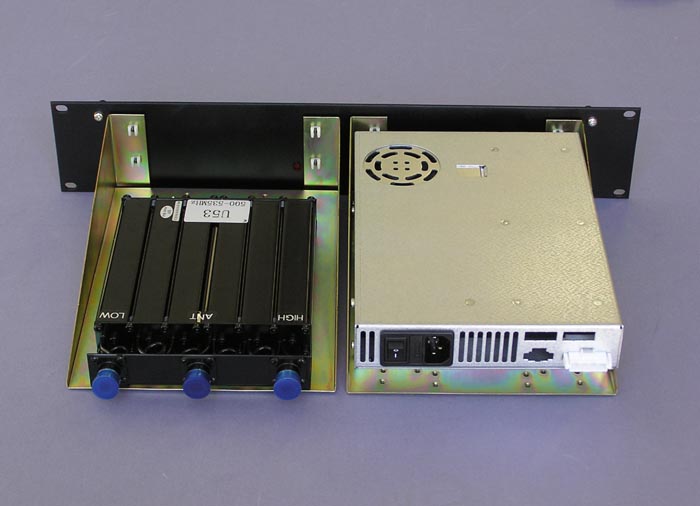

![]() Power Supply Duplexer Rackmount Rear |
![]() Power Supply Duplexer Rackmount Side |
Please note that Duplexers are not supplied.
Features
- Suitable for operation under wide mains voltage swings (85VAC to
265VAC)
and protected against mains surges, spikes and brown outs. Not auto ranging. - Tolerant of high temperatures and vibration.
- Protected against short circuit, over temperature and over load.
- Output over voltage shutdown. Induced output transient protected.
- Manufactured using only well specified and qualified high grade commercial parts.
- Infant mortality burn in period.
- DC output via polarised connector.
- AC input via covered IEC connector.
- Compliant with relevant international standards.
- 100% continuously rated at 9 Amps and 60° C. 15 Amps at 25° C.
- Thermostatically controlled cooling fan.
- Output short circuit protected, no minimum load current.
- 2RU rack mountable option.
- Optional provision for battery charging at a maximum of 1,5 amps
typical.
This allows a SLA type battery to be added for battery back up (future). - Low radiated emissions due to double metal housing.
- Greater supply current capacity to 30Amp or more though paralleling supplies .
- Redundant Power Supply configuration.
Specifications
Power Supply | MXPS15 |
---|---|
AC Mains Input | 85VAC to 265VAC |
Nominal Output Voltage | 13.8V+/- 0.2V (1 Amp) |
Total Max Rated Output Current (TMROC) |
15 Amps Continuous at 25°C. |
Rated Outout at Max Temp | 9 Amps Continuous |
Battery Charger Output | 2 Amps (Max) |
Regulation | +/- 100mV |
Efficiency | 80% typical |
Ripple & Noise | < 6mV RMS |
Operating Temperature | -30°C to 60°C |
Design Field Lifetime (MTBF) | 10 years @ 50°C |
Power Factor | Auto Power Factor Correction |
Weight | 1.2 Kg |
Approvals | C-Tick, CE, UL, TUV, CB, CUL, S-MARK |
Downloads
FILE | SIZE | TITLE | VERSION | UPDATED | |
---|---|---|---|---|---|
![]() |
125 KB | Power Supply Manual | 1 | 06/11/2006 | DOWNLOAD |
